Eclipse

A table lamp that makes light
appear through a twist.

Closed / subtle 0% Open / ambient

Drag, scroll, or use arrow keys

Explore the mechanism

01 / Premise

When it rests, Eclipse almost disappears.

Turn the top and the table reveals its glow.

The lamp stays minimally visible with a restrained ring of light. A deliberate rotation raises the nested layers below the tabletop, enlarging both its presence and the pool of ambient illumination.

Project
Second-semester Industrial Design
Institution
School of Planning & Architecture, Delhi
Mechanism
Helical cam + guide slots
Outcome
Convertible ambient lamp table

02 / Two states

Less object.
More atmosphere.

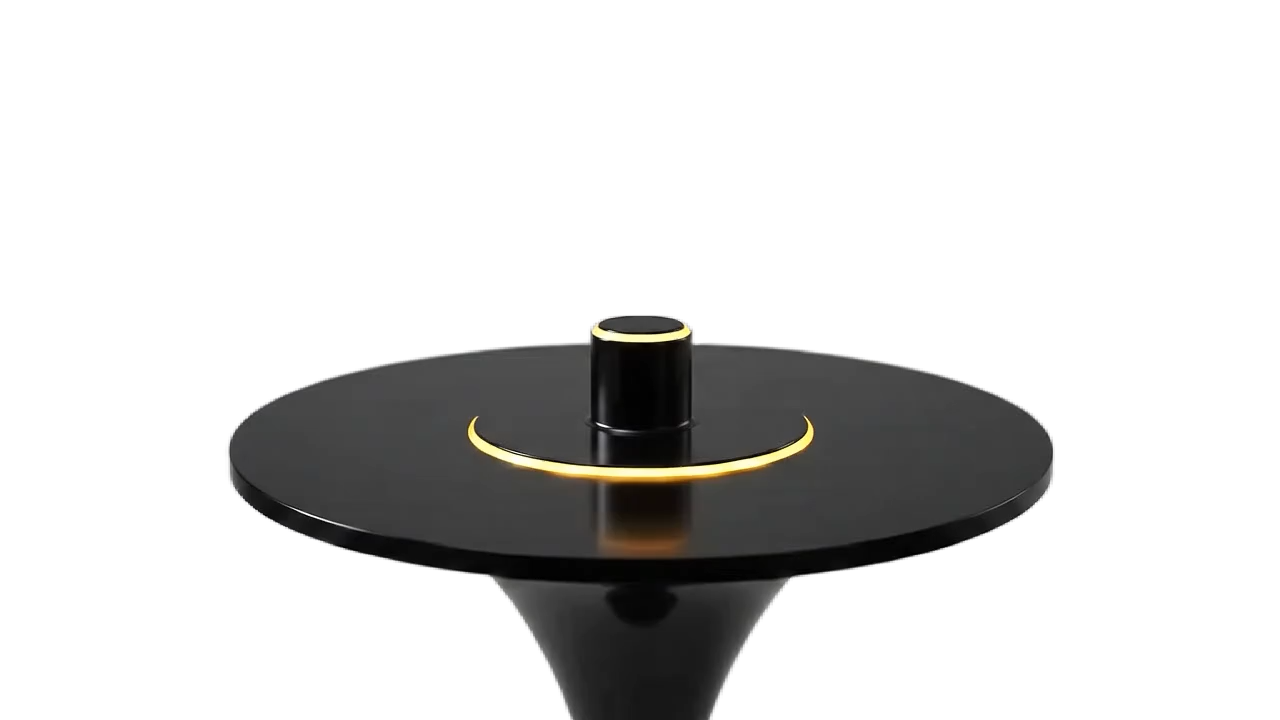

Close view of Eclipse in its closed state
01Quiet state

A slim ring marks the lamp without asking for attention.

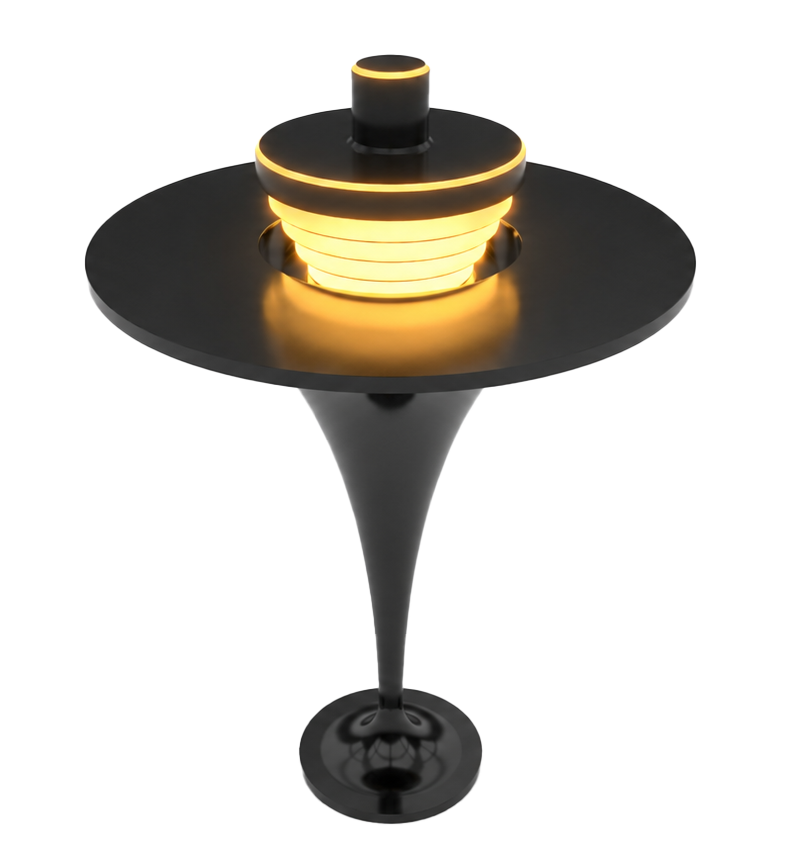

Eclipse with its illuminated layers fully revealed
02Revealed state

Nested diffusers rise to turn the table into an ambient beacon.

03 / Mechanism

A familiar motion,
scaled into furniture.

The internal logic of a twist-up lipstick tube becomes the lamp’s entire interaction: rotary input, guided vertical travel, controlled reveal.

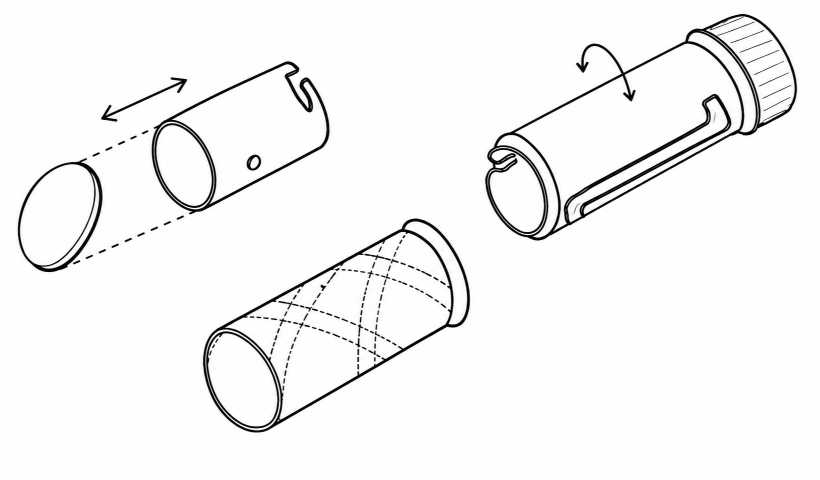

Construction study showing the slotted outer sleeve, helical inner track and rotating base
Helical-track construction study
  1. 01
    Twist

    The top plate doubles as a broad, intuitive handle.

  2. 02
    Translate

    A helical track converts rotation into a measured linear climb.

  3. 03
    Reveal

    Guided stacked plates separate to expose the diffused light.

Concept anatomy

Twist handle / top plate Nested diffuser layers Billet cup Spindle helical track Track slider + mid-stops Bottom cup

04 / Search field

One mechanism.
Sixteen provocations.

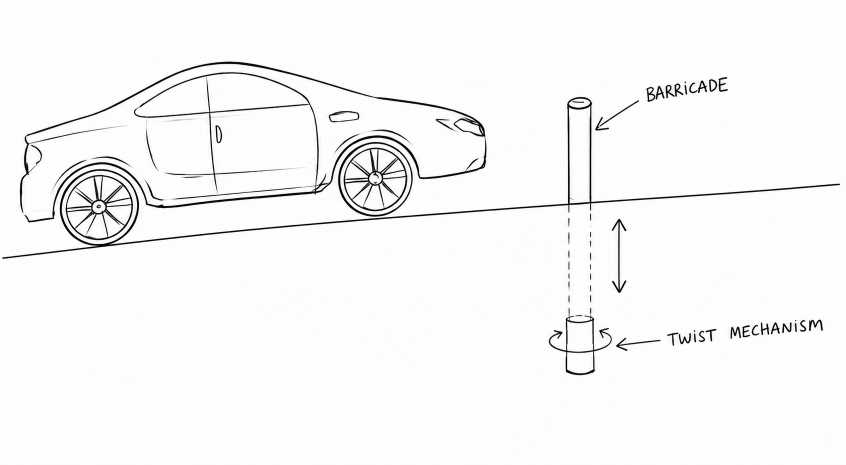

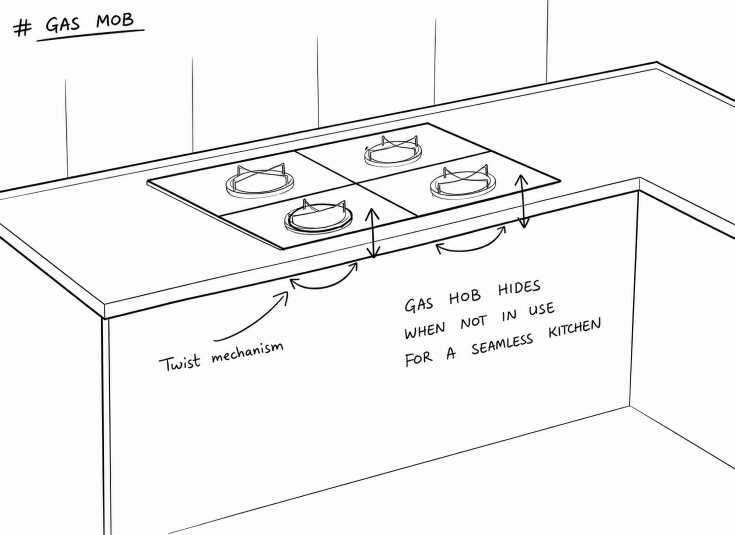

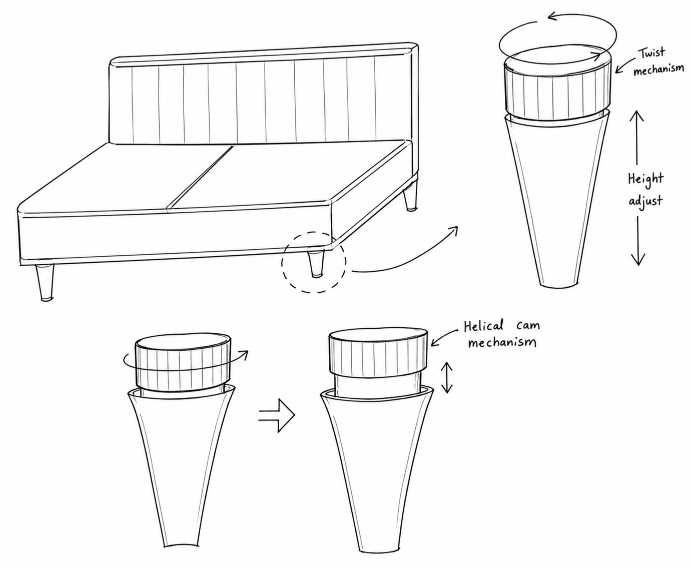

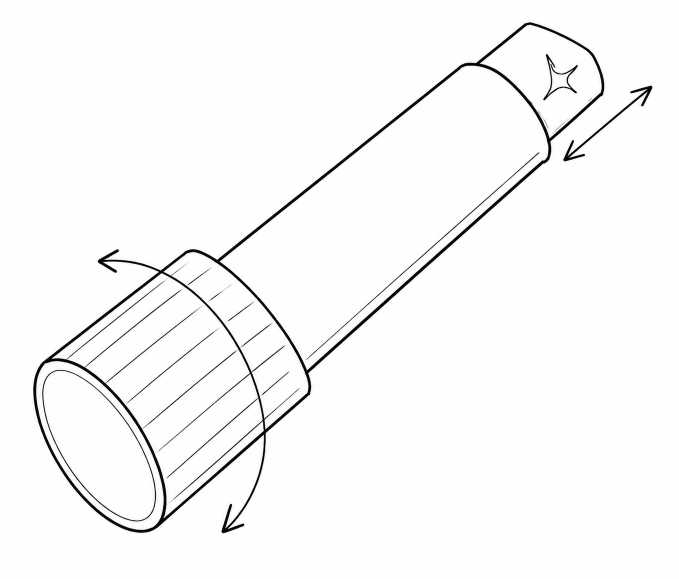

The early search deliberately ignored product category. Each sketch asked where controlled linear movement could conceal, expand, dispense, adjust, or animate.

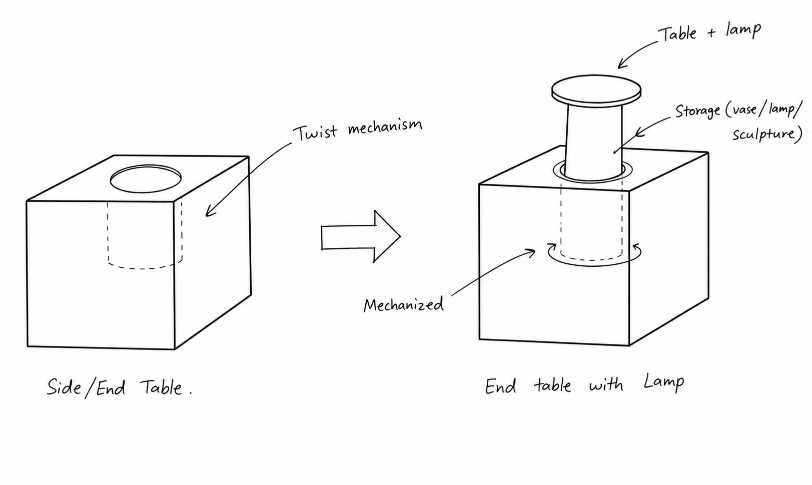

Selected directionHide the light inside the table.
“The useful insight wasn’t simply that something could rise. It was that the object could change how visible it wanted to be.”

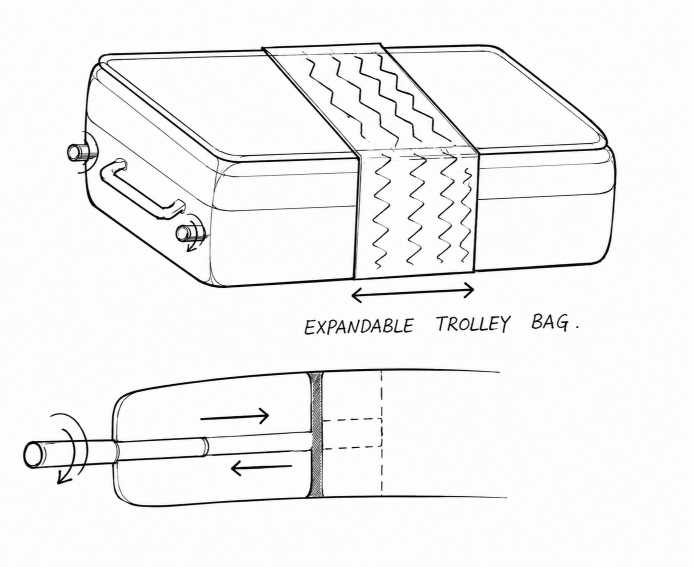

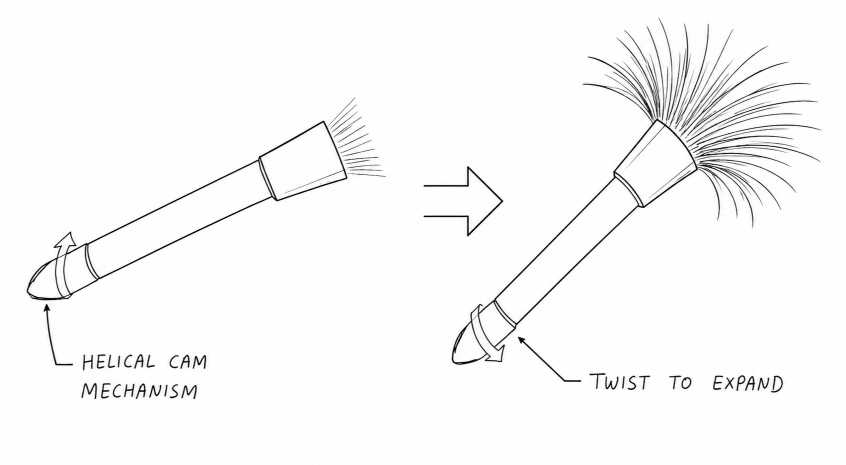

01 · Expand

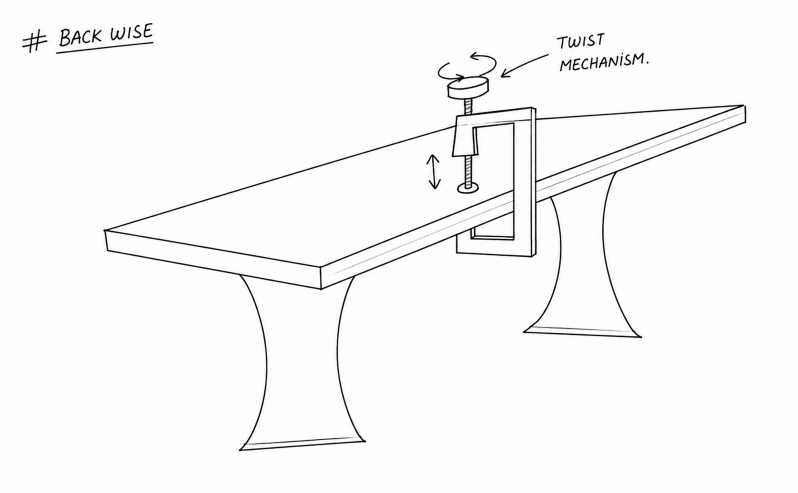

02 · Clamp

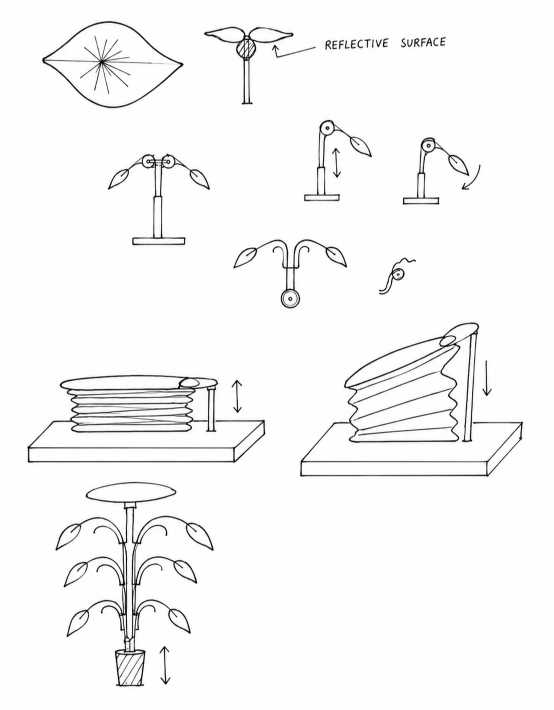

03 · Animate
04 · Extend
05 · Adjust
06 · Expand

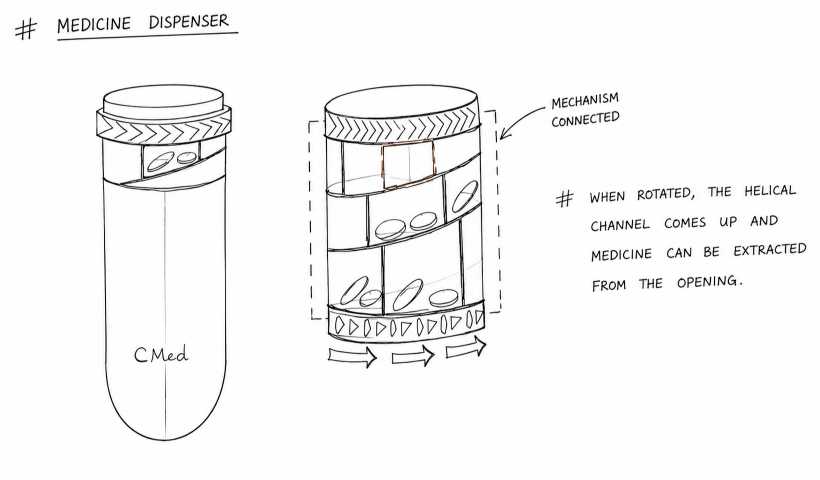

07 · Dispense
08 · Conceal

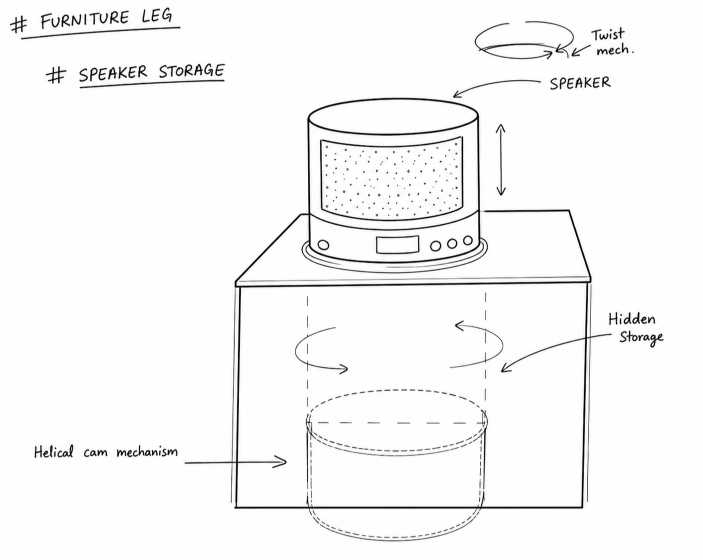

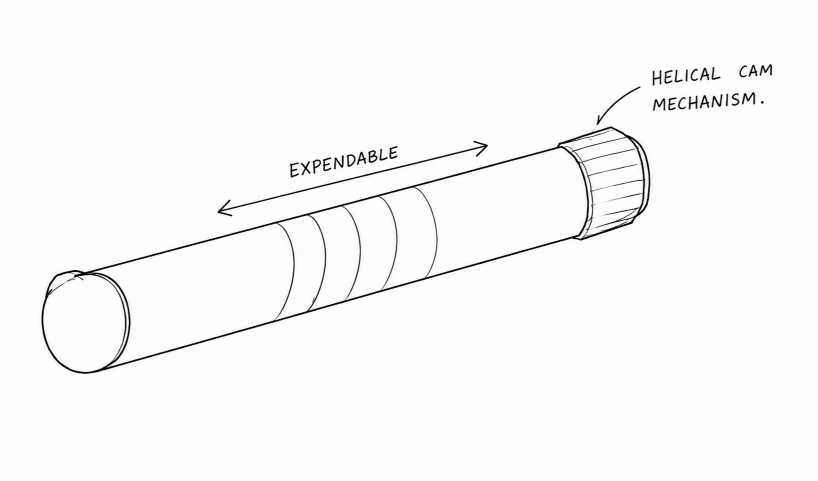

09 · Store
10 · Control
11 · Hide

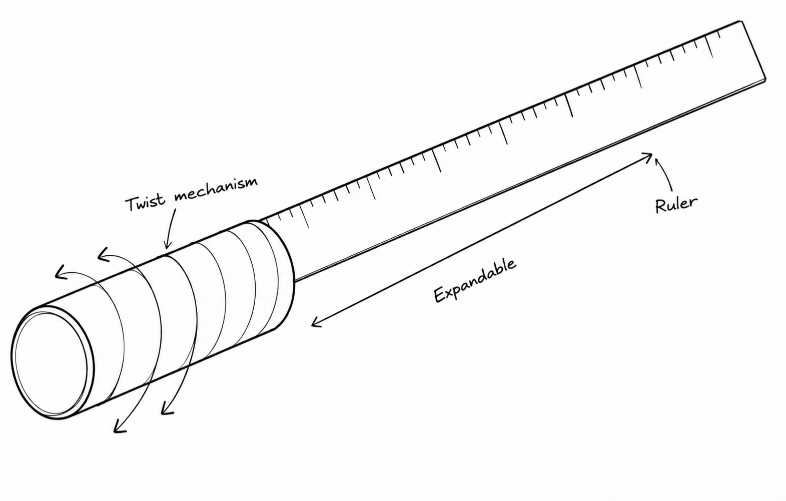

12 · Measure
13 · Eject
14 · Construct

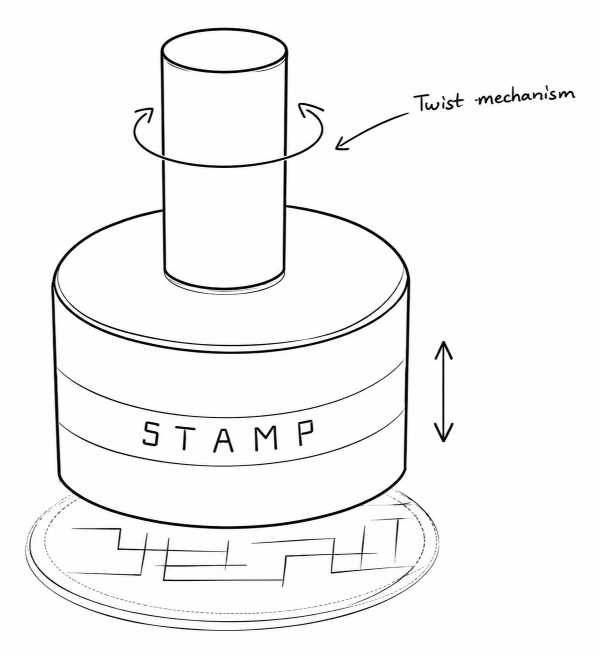

15 · Register

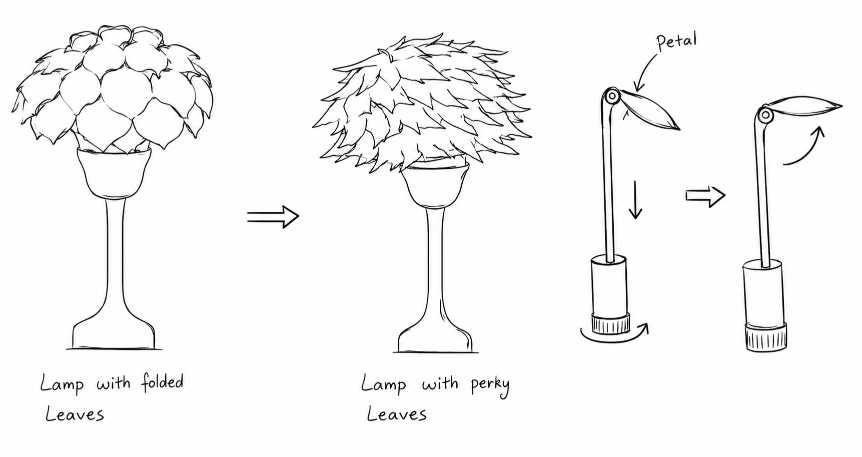

16 · Bloom

Drag to browse · Select a sketch to enlarge

05 / Resolution

From exposed mechanism
to quiet ritual.

The final direction keeps the mechanical movement legible, but folds it into a simple domestic gesture. The lamp does not switch between off and on; it moves between absence and presence.

Physical form trials

Choosing a language for movement.

Full-scale studies explored two readings of the lamp head: a mechanically legible stack and a broader form exploration. The stacked geometry moved forward because every layer makes the lamp's vertical travel visible.

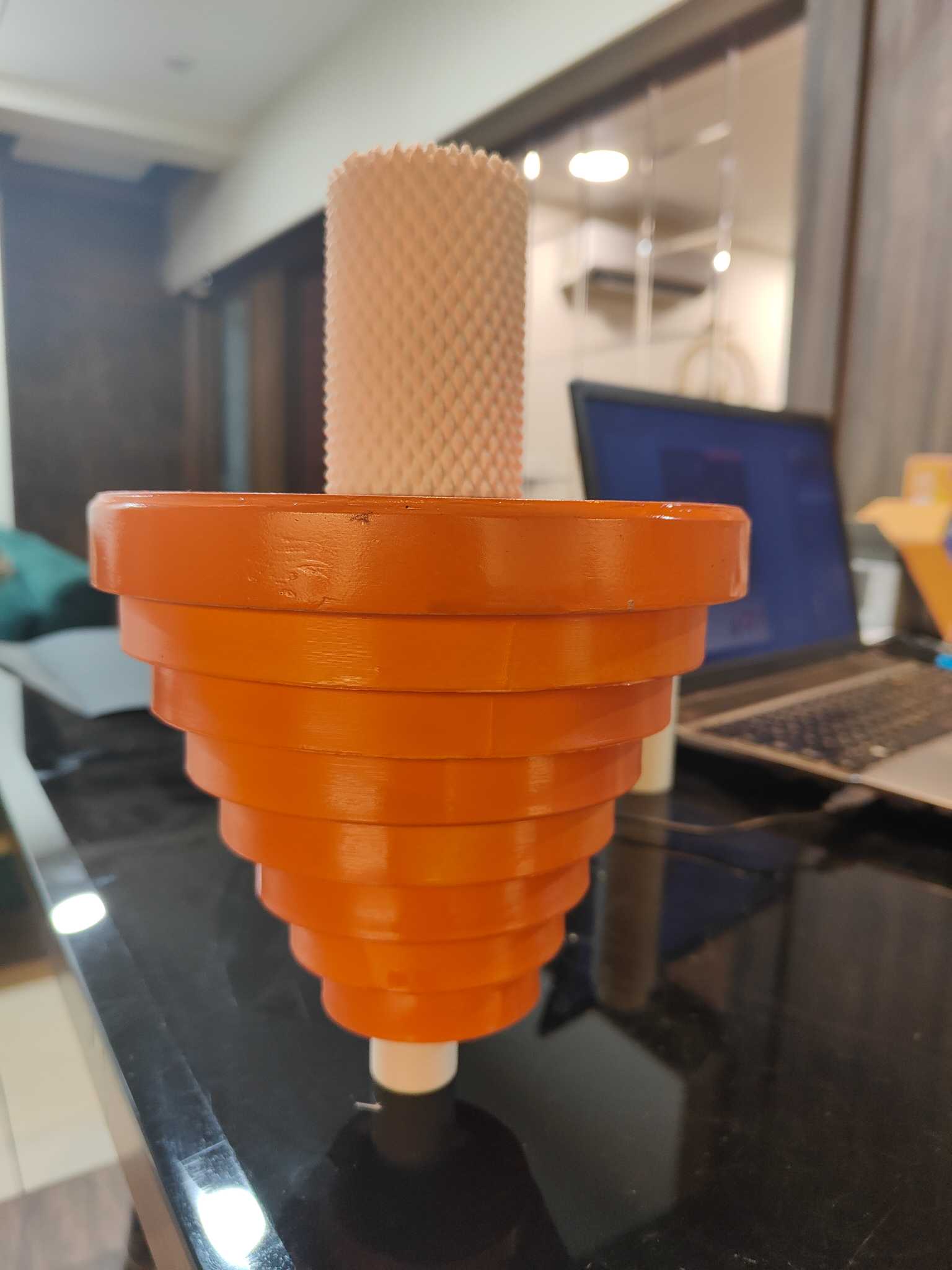

Orange physical prototype testing the nested stepped layers of Eclipse
01Stacked reveal studySelected direction

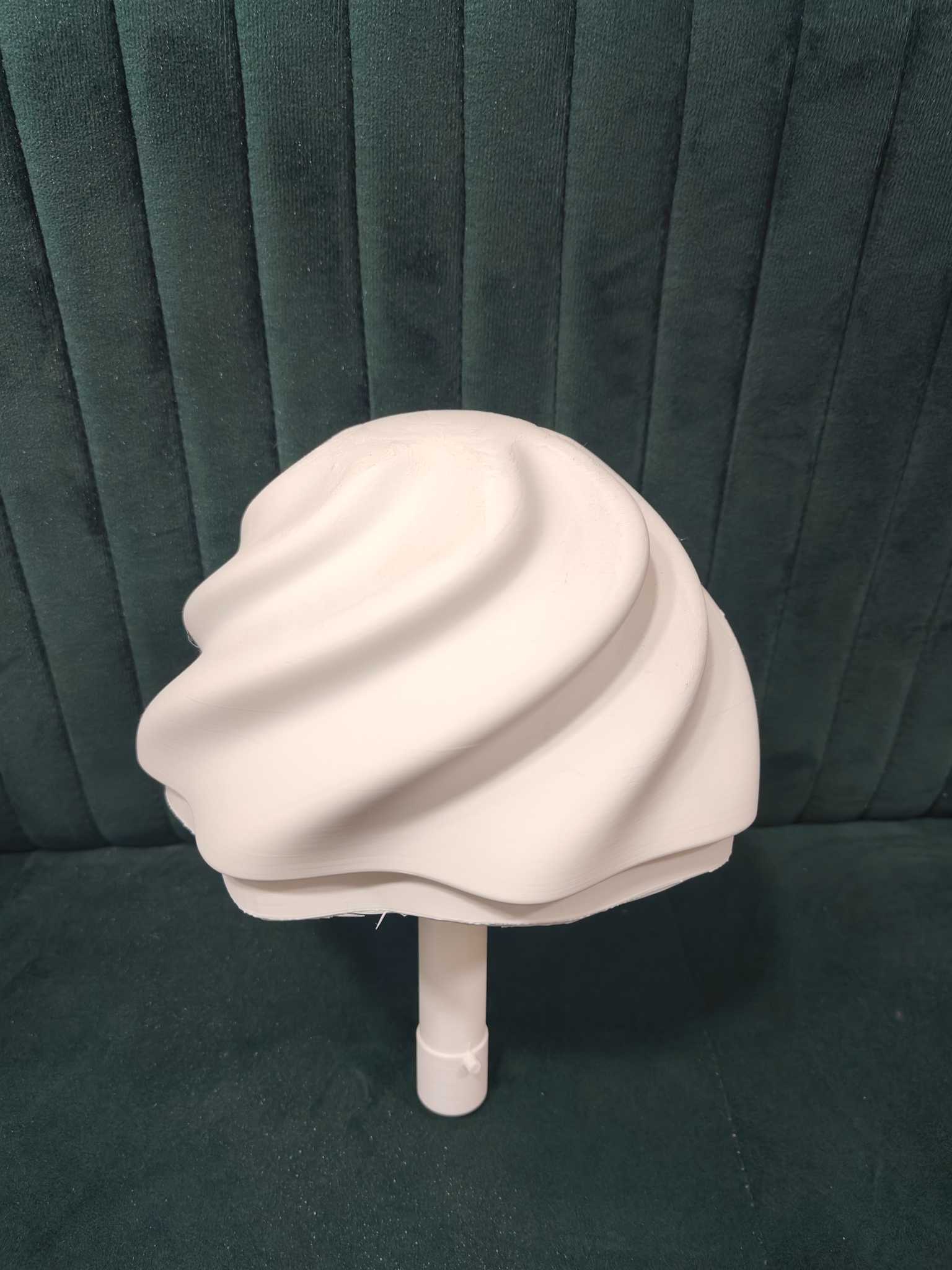

White physical form exploration for the Eclipse lamp head
02Form explorationPhysical study

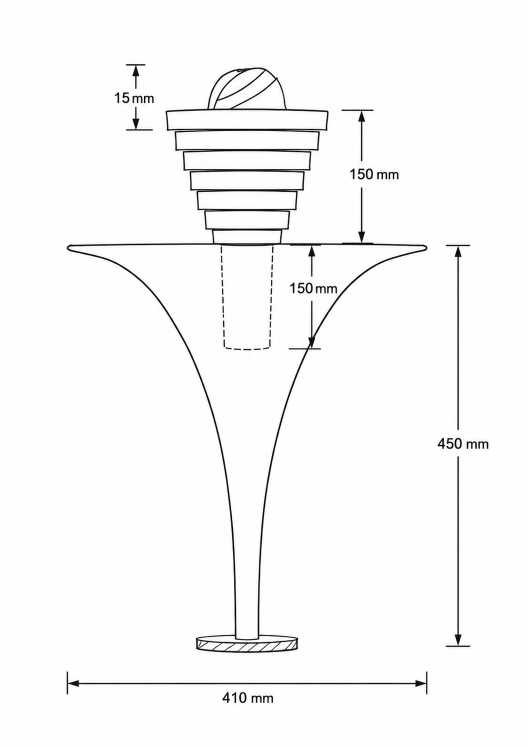

Proportion study / supporting sketch
Ø410 mmTabletop study diameter
H450 mmSide-table study height
↕150 mmExplored reveal travel
CMFBlack + fluoro orangeProposed polycarbonate surfaces

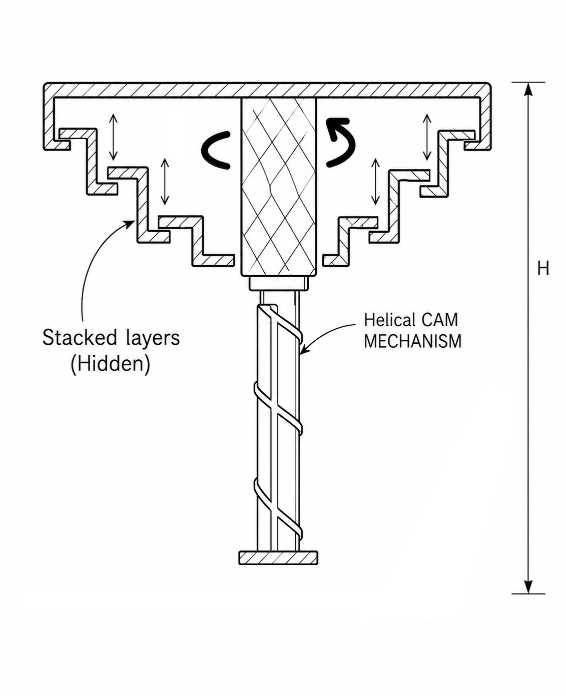

Section study / supporting sketch

06 / Jury presentation

The mechanism,
made tangible.

The working model was presented alongside the complete development panel at SPA Delhi. The display brought the mechanism study, form trials and full-scale table together as one continuous design argument.

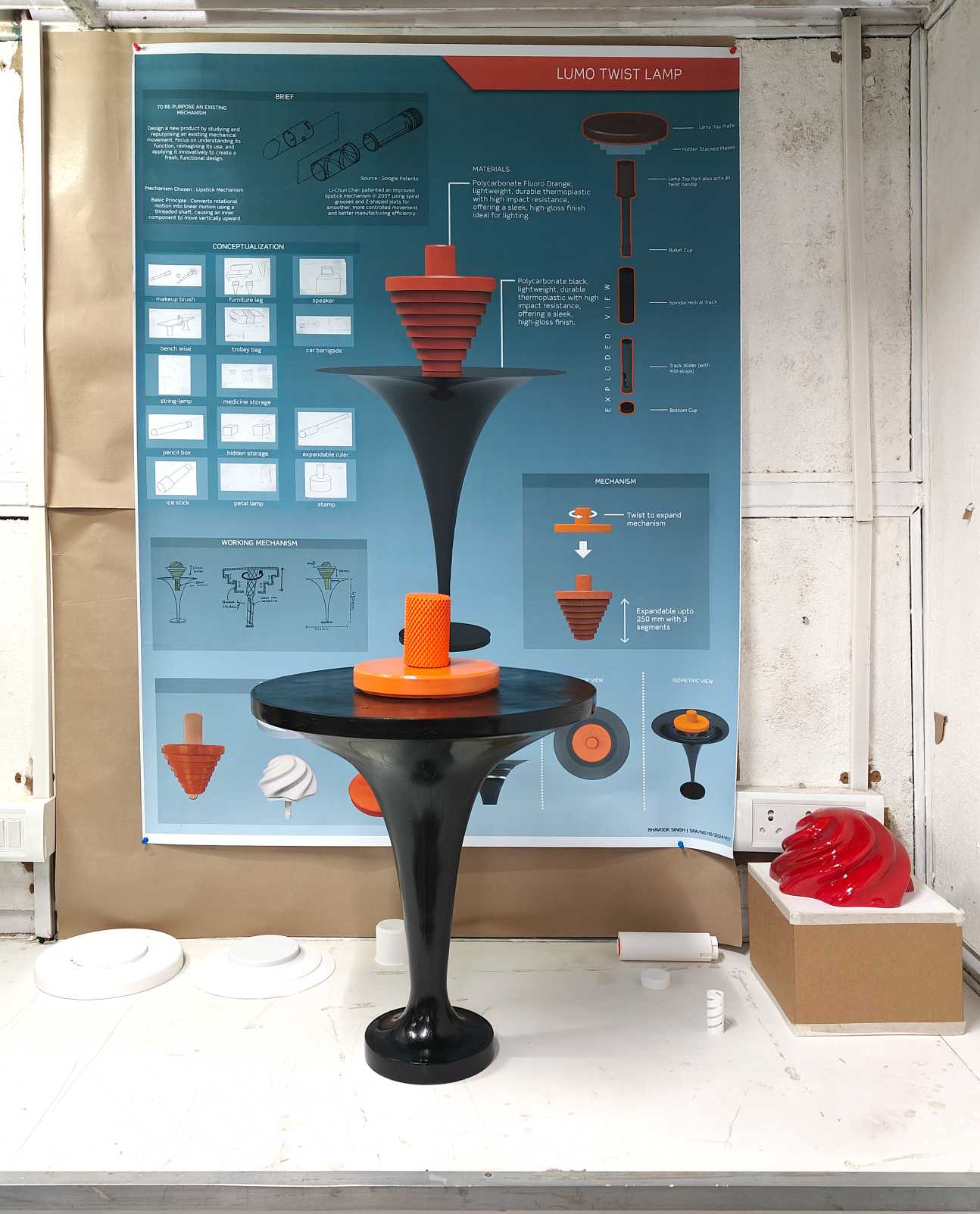

Eclipse working model presented in front of the project jury panel at SPA Delhi
01Jury display / SPA DelhiWorking model, form studies and development panel

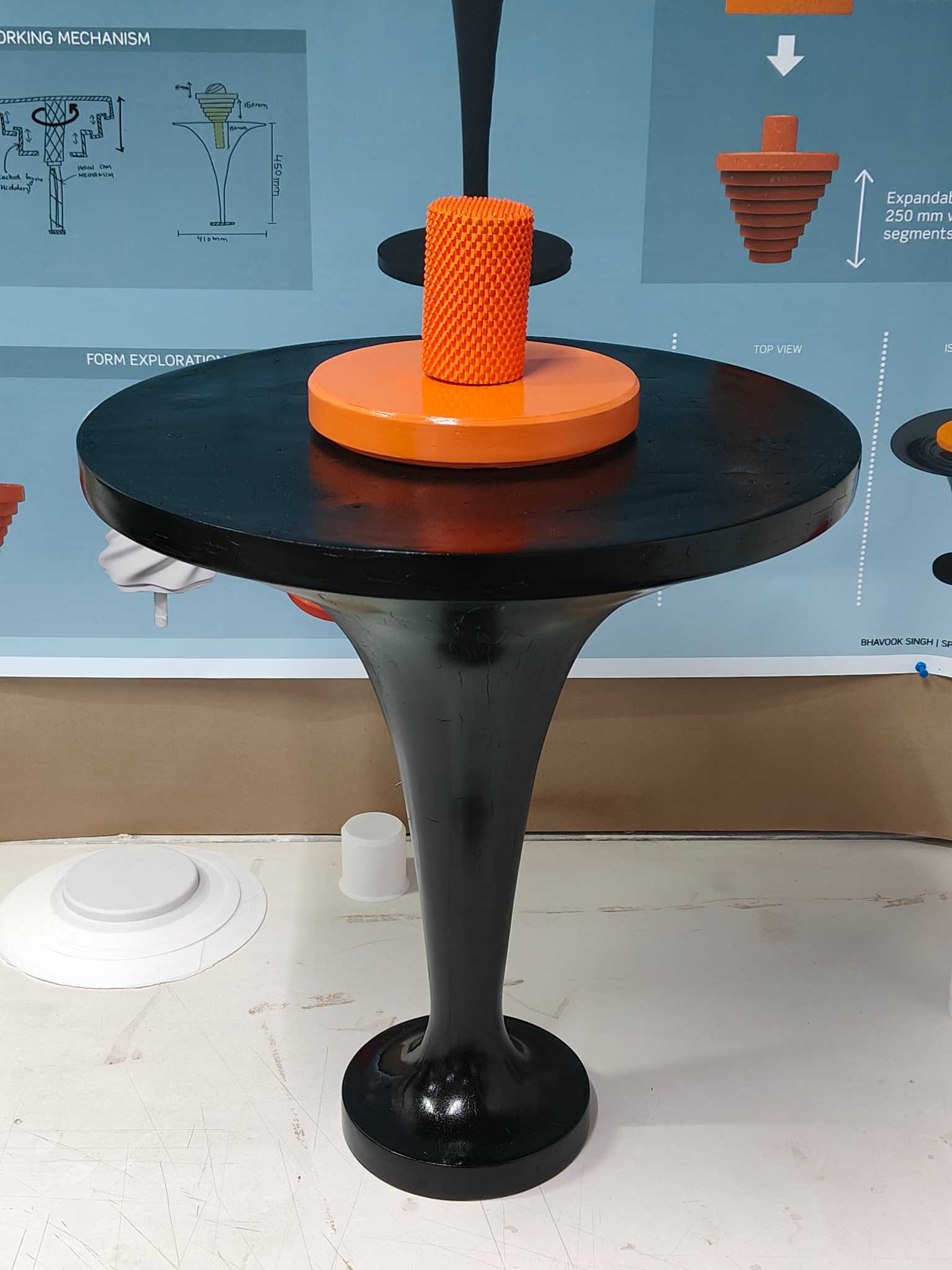

Close view of the full-scale Eclipse table model during the jury presentation
02Full-scale model detailFinal academic presentation
Eclipse table lamp in its fully revealed state

One twist changes
what the object is.

Eclipse · Bhavook Singh · SPA Delhi
